LINK BELT LS348 Crawler Crane Track Shoes

LINK BELT LS348 is 300 Tonnage Crawler Crane, its Side Frames is below

Crawler Tracks

Heat treated, self-cleaning, multiple hinged track shoes joined by one piece full floating pins, bolt&nuts;

60pcs shoes per side frame

Rollers

Thirteen sealed (oil filled) track rollers per side frame

Four sealed auxiliary carrier rollers / top rollers per side frame

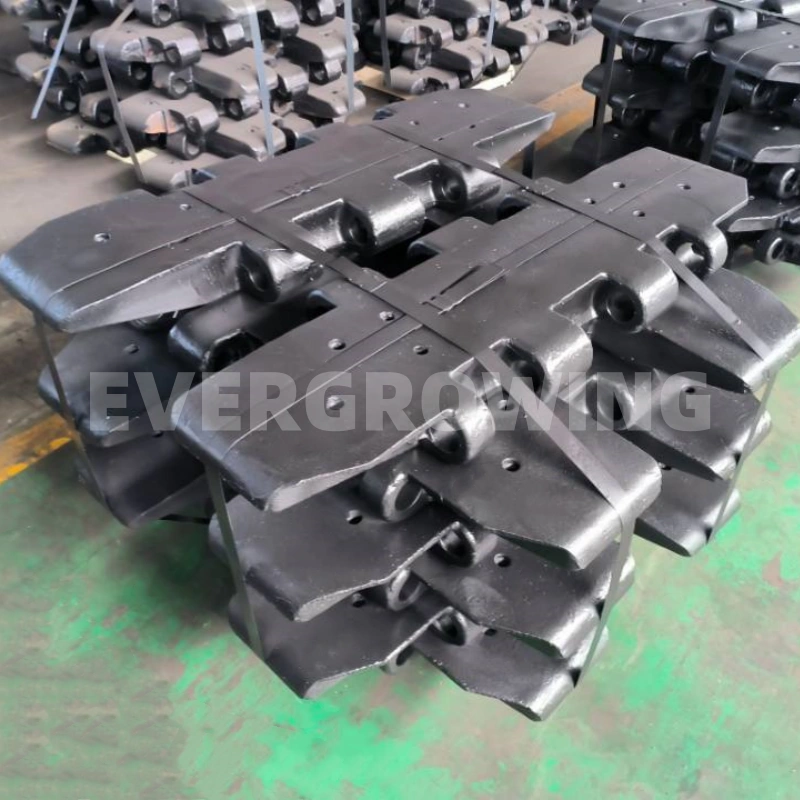

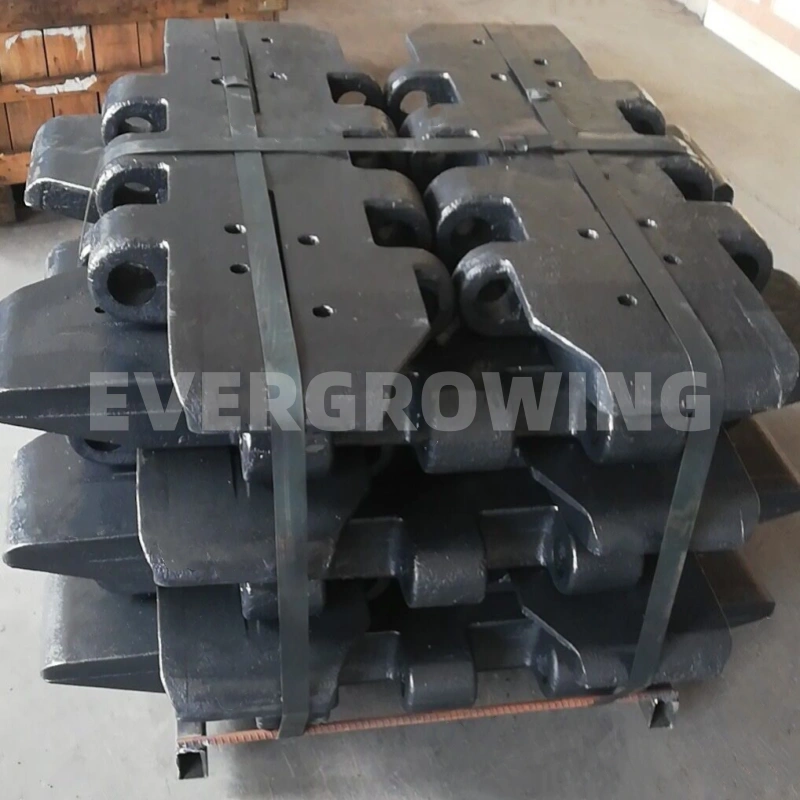

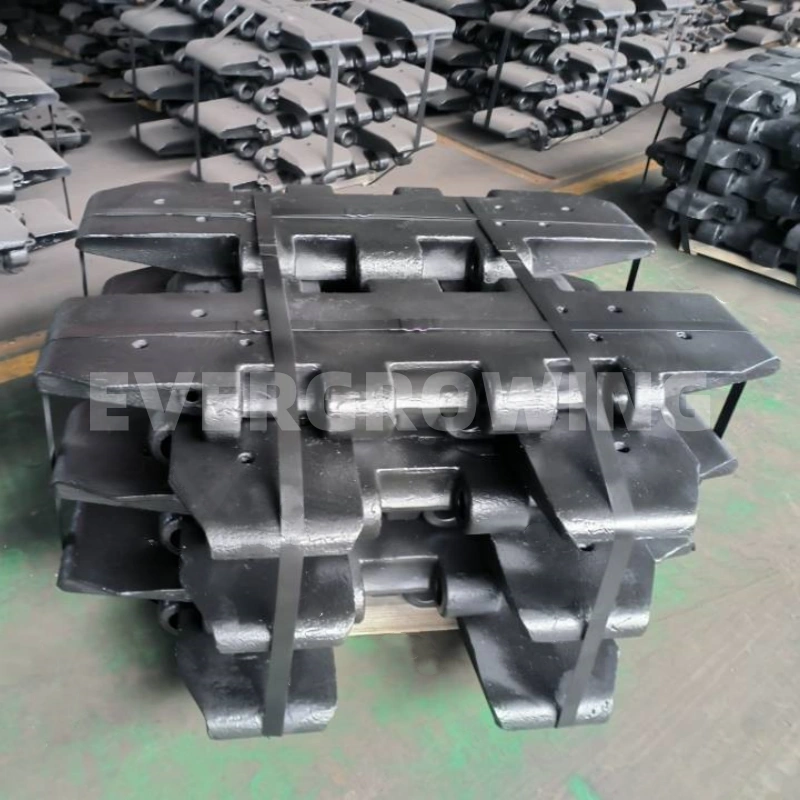

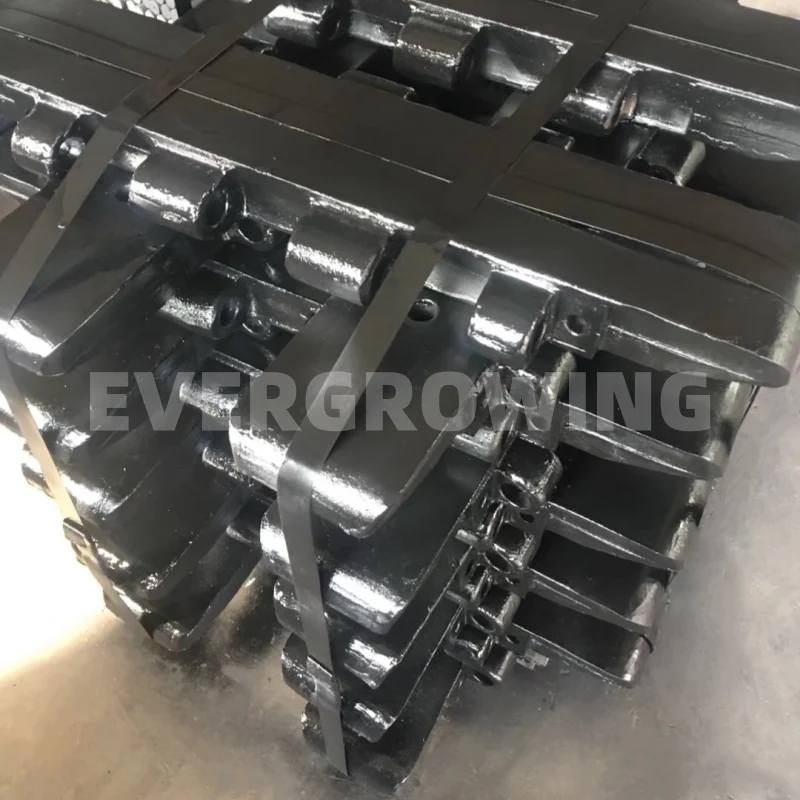

LINK BELT LS348 Crane Track Pads Details:

Material	28CrMnMoNi, G22NiMoCr 5-6
Technology	Casting
Heat Treatment	Whole Quenching and Tempering
Advantage	Superior Material; Strict Quality Control; OEM Quality; Plenty of Stocks
Brand Name	EG
Warranty	2500 Working Hours / One Year

LINK BELT LS348 Crane Track Shoes Production Process:

Mold Making → Sand Mold → Casting → Polishing, Riser Milling → Quenching & Tempering → Hardness Testing, Mechanical Properties Testing → Quenching → Painting → Package

Crane Crawler Tracks Quality Inspection:

All our crawler shoes will be tested strictly from the material element and mechanical properties.

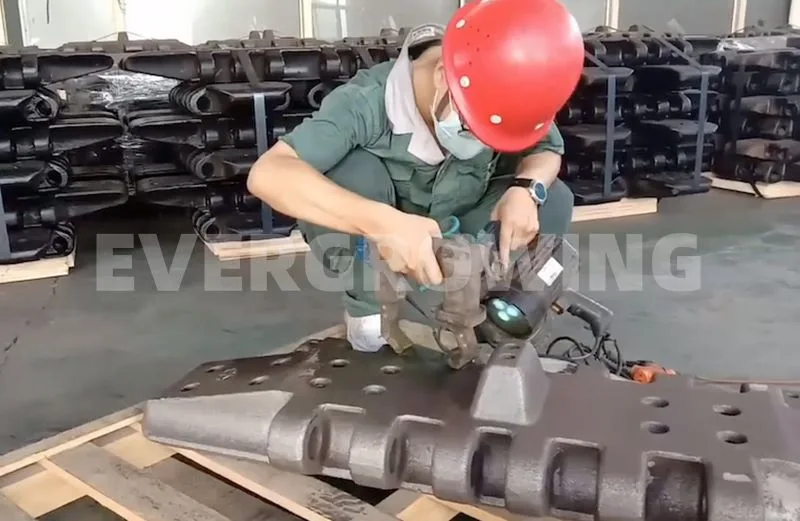

We also did the Slice Cutting Test, UT, MT for all our crawler pads

LINK BELT Crane Undercarriage Parts we can produce

LS218HII, LS218HSL, LS218HSL-C5, LS228HSL, LS238H, LS238HSL, LS248H, LS248HII, LS248HSL, LS248H5, LS278H, LS298HSL, LS308H, LS318, LS338, LS348, LS348H5 etc.

If interested, please freely contact us
