Crawler Cranes are being used more and more as base machines for foundation work in urban redevelopment and other large scale projects.
- Foundation work requires good winch capability, so the lifting capability and arm length important in crawler cranes used for building construction.
- Track shoes width provide excellent ground contact pressure, which is suitable for soft and muddy terrain, have superior mobility and stability.

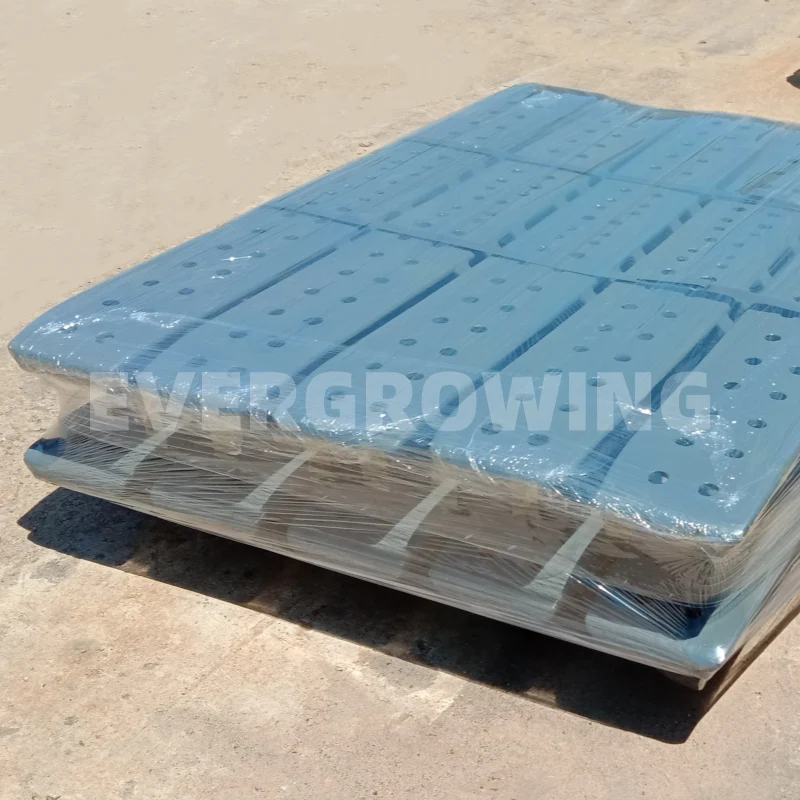

LIEBHERR LR1800 Crane Track Shoes Plates Details:
| Material | G22NiMoCr 5-6 |
| Technology | Casting |
| Heat Treatment | Whole Quenching and Tempering |
| Advantage | Superior Material; Strict Quality Control; OEM Quality; Plenty of Stocks |
| Brand Name | EG |
| Warranty | 2500 Working Hours / One Year |
Our LIEBHERR Crane Bottom Plates Advantages:
- Materialis G22NiMoCr 5-6, as LIEBHERR Original drawing requirements, to adapt to the heavy load LR1650 conditions.

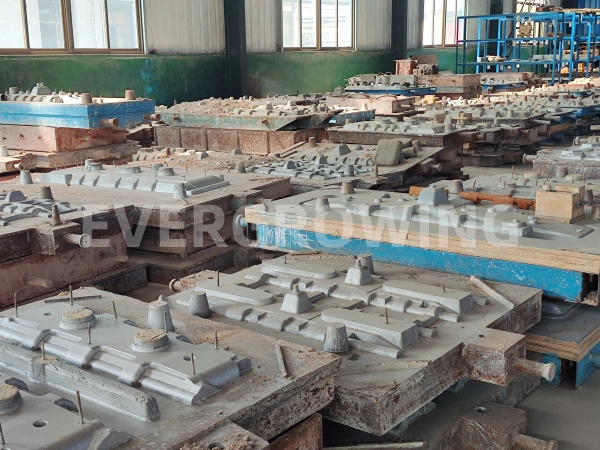

- We use Aluminium Moldto produce crane bottom plates, make floor plates appearance more smooth, crawler shoes dimensions precise though produce many lots
- Advanced Quenching & Tempering improved internal mechanical properties, to extend crane bottom plates working life cycle.
- CNC machining accuracy, the tolerance of key dimensions (such as Track shoe Pitch and hole diameter) is controlled within±0.05mm, and the roughness Ra ≤ 3.2μm.
LIEBHERR Crane Track Pads Daily Maintenance:
- Wear monitoring
Use calipers to measure the thickness of track shoes, and one side is worn more than 15% of the original thickness, need to be replaced.
Check the height of track pads teeth, wear more than 30% need to be repaired or replaced.
- Cracks and deformation
Inspect the bottom plate body by visual or magnetic particle inspection, and stop using it immediately if a crack > 5mm in length is found.
Use a ruler to detect the flatness of the track shoes, and the bending deformation > 3mm/m needs to be corrected or replaced.
Our Company Certificates:
YANTAI EVERGROWING, specialize in produce Crawler Crane Undercarriage Parts for many years, such as Track shoes, Lower rollers, Upper rollers, Sprocket and Take-up wheel
25+ crane crawler cranes
600+ crane models
5000+ crane undercarriage parts
You can enjoy one-stop shopping here!
If interested, please freely contact us
Mail: info@crawlercranesparts.com
Whatsapp:+86 17853553781
