LIEBHERR LR1200 Crawler Crane Track Rollers

A crawler crane is one crane mounted on an undercarriage with a set of tracks (also called crawlers) that provide stability and mobility. Their main advantage is that they can move around on site and perform each lift with little set-up, since the crane is stable on its tracks with no outriggers. In addition, a crawler crane is capable of traveling with a load.

LIEBHERR LR1200 Crane Crawler Chassis:

Propulsion through axial piston motor, hydraulically released spring loaded multi-disc brake, crawler tracks, hydraulic chain tensioning device.

Track pads 1200mm

Rive speed 0-1.6km/h

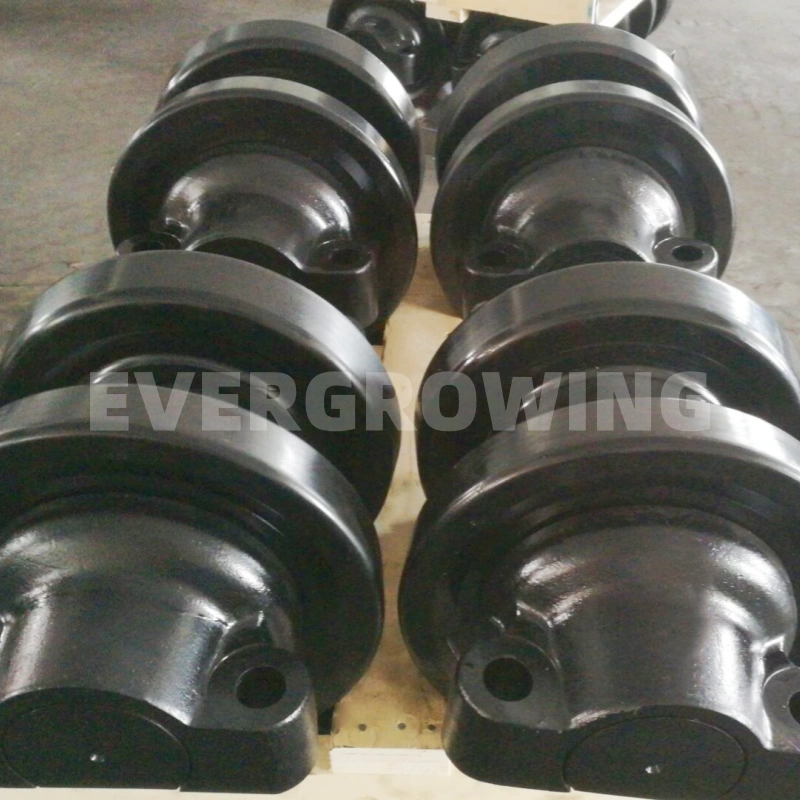

LIEBHERR LR1200 Crane Lower Rollers Details:

Material	42CrMo
Technology	Forging
Heat Treatment	Advanced Quenching and Tempering, then Surface Hardness and Deep Hardening
Advantage	Superior Material; Strict Quality Control; OEM Quality; Plenty of Stocks
Brand Name	EG
Warranty	2500 Working Hours / One Year

LIEBHERR LR1200 Crane Bottom Rollers Production Process:

Cutting → Forging→ Rough Machining → HB Testing → Half-finished Machining → Quenching → Finished Machining → Cleaning → Assembling → Package

Our LIEBHERR Crane Track Rollers Advantages:

Rollers Material. According to different crane tonnage and different working environments, we will use the suitable material to make support rollers to have a long service life.
Best floating seals make lower rollers long working life and perfect performance under any working condition.
Copper bushing lengthened life cycle.

LIEBHERR Crane Undercarriage Parts we can produce

LR1200, LR1250, LR1280, LR1300, LR1350, LR1350-1, LR1400, LR1400-2, LR1500, LR1550, LR1600, LR1600-2, LR1600-2-W, LR1650, LR1700, LR1750, LR1750-2, LR1800, LR11000, LR11350 etc

YANTAI EVERGROWING is Crawler Crane Undercarriage Parts Specialist, we have advanced production equipments and inspection & testing equipments. And, each part will be passed very strictly inspection before dispatch, to ensure the high quality.
