KOBELCO CKL2600 lattice boom crawler crane has exceptional Lifting Performance
1) Maximum Lifting Capacity: 260 tons (main boom condition), extendable to 350 tons (counterweight enhancement mode).
2) Main Boom Length: Standard configuration 36-144 meters, maximum combined length 210 meters (main boom + jib), suitable for ultra-high-rise buildings and long-span lifting requirements.
3) Lifting Height: Up to 230 meters, applicable for offshore wind power, ultra-high-rise buildings, large bridges and other scenarios.
KOBELCO CKL2600 Crane Bottom Rollers Details:
| Material | 42CrMo, 40Mn2 |
| Technology | Forging |
| Heat Treatment | Advanced Quenching and Tempering, then Surface Hardness and Deep Hardening |
| Brand Name | EG |
| Warranty | 2500 Working Hours / One Year |

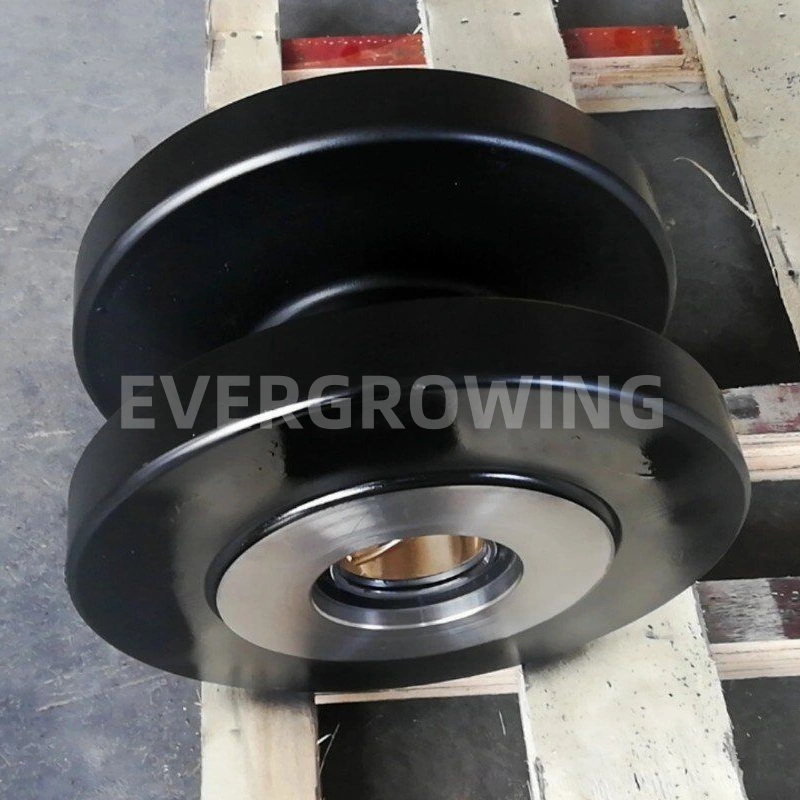

Our Crane Lower Rollers Structure:
Our roller’s Bushing Material is ZCuZn25A16Fe3Mn3, its advantages as below:
- Low friction coefficients
Copper bushings have low friction coefficients (about 0.1-0.15) when match with steel shaft, reducing operating resistance and extending lifespan
- High pressure resistance strength:
The compression strength of copper bushing can reach to 200-300 Mpa, and can withstand the dynamic impact load of track system (such as instantaneous impact force of 50-80 tons)
- Environmental corrosion resistance: Copper bushings have better corrosion resistance than ordinary steel bushings in wet, acidic and alkaline environments, with a 30% to 50% increase in lifespan (especially in salt mist, mud conditions).
- Temperature adaptability: A wide range of working temperatures (−30°C to +200°C)
KOBELCO CKL2600 Crane Track Rollers Production Process:
Company Certifications:
FAQ:
- Do you support customization or OEM?
Yes, we often produce parts according to clients’ drawings, requirements, and Logo.
- How long have you been in this industry?
20+ technical team industry experience.
- Do you support third-party inspection?
Yes, also welcome clients to visit our company.
- Do you have ISO or other certifications?
ISO 9001:2015, EG Brand, SGS Testing…
YANTAI EVERGROWING specializes in producing Crawler Crane Undercarriage Parts for many years, 25+ Crawler Crane Brands, 600+ Crawler Crane Models, 5000+ Crawler Crane Parts
You can enjoy the one-stop service here!
The quality of the parts is the first priority for running our business.
