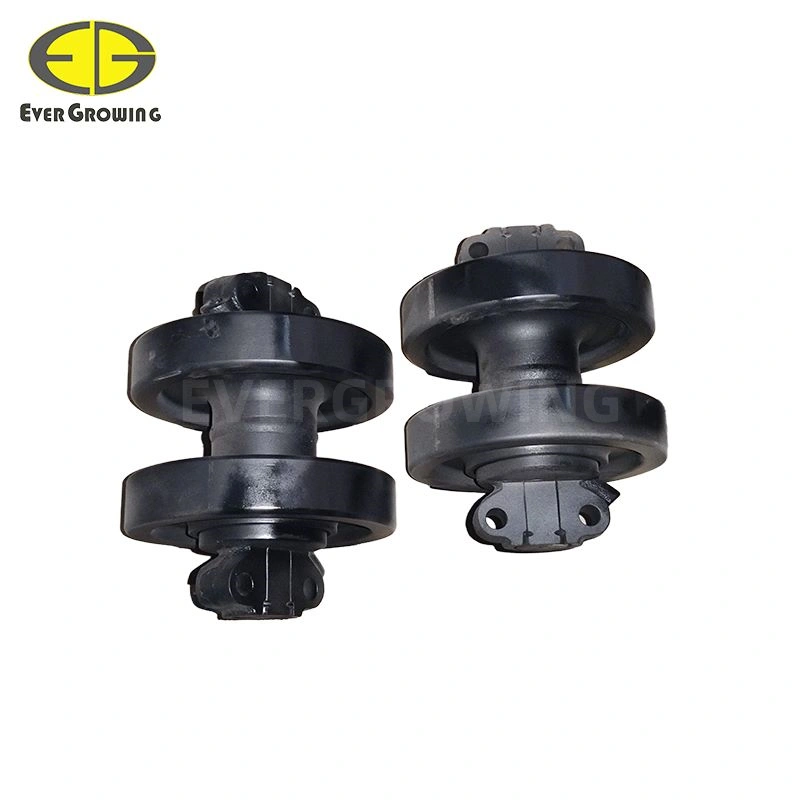

The IHI CCH3000 top roller is a crucial undercarriage component designed to guide the track chain and support the crane’s weight, and it is manufactured by various suppliers using specific materials and heat treatment processes. The original equipment manufacturer (OEM) for the crane is IHI Construction Machinery Limited, which was acquired by KATO Works.
Product Specifications
Aftermarket manufacturers provide top rollers that are compatible with the IHI/KATO CCH3000 model, often emphasizing durability and quality control to match or exceed OEM standards.
- Material: The roller body is typically made from 40Mn2 steel, while the pin is made of 42Cr steel.
- Technology: Forging techniques are commonly used in manufacturing the roller.
- Heat Treatment: The parts undergo rigorous heat treatment processes, including whole quenching and tempering, followed by surface hardening, to enhance mechanical properties, yield strength, and tensile strength.
- Bushing: Suppliers often use 100% fine copper bushings to ensure reliable performance.
- Seals: High-quality floating seals are used to retain lubricating oil and prevent contamination from dirt and mud.
- Function: The top roller (also known as a carrier roller or upper roller) holds the track shoe up, helping to maintain proper tension and guiding the crawler movement
A crane top roller is a type of wheel that is mounted on the top of a crane’s boom. It is designed to support and guide the hoisting rope or chain as it lifts and lowers heavy loads. The top roller enables the crane to smoothly and safely move the load along the boom’s length. It is a critical component of the crane’s lifting system and must be carefully maintained to ensure its safe and efficient operation.
| Products Name | Crawler Crane Top Roller, Crawler Crane Upper Roller, Crawler Crane Carrier Roller |
| Type | Crawler Crane Undercarriage Parts |
| Material | 50Mn, 40Mn2 |
| Technology | Forging |
| Heat Treatment | Whole quenching and tempering, then surface hardening |
| Color | Black |
| Condition | 100% New |
| Brand Name | EG |
| Advantage | Superior material; Strict quality control; OEM Quality; Large stock; Prompt Shipment; Excellent after-sales service |
| Place of Origin | Shandong, China(Mainland) |
| Warranty | 2500 Working Hours |
| Certification | ISO9001:2008 |
Key Features of IHI CCH3000 Top Roller:
- Robust Design
Constructed from high-grade alloy steel with hardened surfaces for wear resistance.
Engineered to endure dynamic loads and shock forces during crane travel and slewing.
- Function & Stability
Maintain proper track tension and alignment by guiding the track chain’s return path.
Reduce stress on track pins and bushings, extending overall track life.
- Sealed Lubrication System
Equipped with grease-filled bearings or bushings for long-term performance.
Advanced sealing technology (e.g., double-lipped seals) to block dirt, water, and abrasives
Available Model for IHI Crane Top Roller:
| CH350, CH400, CH500, CH800, CCH300, CCH300T, CCH350, CCH350-D3, CCH400, CCH500, CCH500-2, CCH500-3, CCH500-3 II, CCH500-T, CCH500EX, CCH550, CCH650, CCH700, CCH700-3II, CCH800, CCH800-2, CCH900, CCH1000, CCH1000-5, CCH1200, CCH1200-5, CCH1500, CCH1500E, CCH1500-3, CCH1800, CCH2000, CCH2000-5, CCH2500, CCH2800, DCH650, DCH700, DCH800, DCH900, DCH1000, DCH1200, K300, K400A, K400B, K1000, IPD100, IHI 6020, etc. |
FAQ:
- What is your MOQ?
Normally quantity for one set of machines, or per your requirement exactly. - Can you provide samples?
Yes of course - What are your payment terms?
TT payment in advance or L/C. - How do you guarantee product quality?
Material certificate and ISO quality certificate are available. - Do you support customization or OEM?
YES, OEM is acceptable. - What is your warranty policy?
2500-3000 working hours/ one year. - How are the products packaged?
PLYWOOD PALLET OR CASE suitable for exporting. - Could you provide the product catalog?
Product catalog or technical requirements and drawings are available.
